上篇文章 之后,继续折腾我的小车,又用C#和Android 写了两个控制客户端。

思路比较直接,使用POST请求去发送小车转向参数,然后就动起来了。C#不说了,很熟练写起来也非常简单,使用钩子捕获全局键盘,这样及时程序不在前台也能控制小车。

核心代码如下:

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Diagnostics;
using System.Drawing;
using System.IO;
using System.Linq;
using System.Net;
using System.Net.Security;
using System.Runtime.InteropServices;
using System.Text;
using System.Windows.Forms;

namespace WangHeng.Org.PiCar
{
    public partial class MainFrm : Form
    {
        public MainFrm()
        {
            InitializeComponent();
            InitControl();
            KeyHookUtils.Hook_Start();
        }

        private void InitControl()
        {
            this.StartPosition = FormStartPosition.CenterScreen;
            this.Text = "PiCar Control  v" + this.ProductVersion;
            this.MaximizeBox = false;
            this.MinimizeBox = true;
            this.FormBorderStyle = System.Windows.Forms.FormBorderStyle.FixedSingle;

            this.btnDown.Tag = "t_down";
            this.btnLeft.Tag = "t_left";
            this.btnRight.Tag = "t_right";
            this.btnUp.Tag = "t_up";
            this.btnStop.Tag = "t_stop";
            this.statusStrip1.SizingGrip = false;
            this.lblPostResultInfo.Text = "启动成功!";
        }
        protected override bool ProcessDialogKey(Keys keyData)
        {
            if (keyData == Keys.Left)
            {
                lblPostResultInfo.Text = "left";
            }
            return base.ProcessDialogKey(keyData);
        }

        private void ctlButton_Click(object sender, EventArgs e)
        {
            var btn = sender as Button;
            var result = CarCtl.TurnFunc(btn.Tag.ToString());
            this.lblPostResultInfo.Text = "请求成功 - " + result;
        }


    }

    public static class CarCtl
    {
        public enum CarStatus
        {
            Left,
            Right,
            Up,
            Down,
            Stop,
            Unknown
        }

        public static CarStatus CurrentStatus = CarStatus.Unknown;
        public static string TurnFunc(string direcID)
        {
            try
            {
                var requestUrl = "http://192.168.1.171:2000/ctl";
                var requestData = new Dictionary<string, string>() { { "id", direcID } };
                var requestUserAgent = "WangHeng PiCar/v1.0";
                var requestEncoding = Encoding.Default;
                var result = HttpUtility.CreatePostHttpResponse(
                        requestUrl,
                        requestData,
                        5000,
                        requestUserAgent,
                        requestEncoding,
                        null);

                using (var sr = new StreamReader(result.GetResponseStream(), requestEncoding))
                {
                    return sr.ReadToEnd();
                }
            }
            catch (Exception ex)
            {
                return null;
            }
        }
    }


    public class KeyHookUtils
    {
        [StructLayout(LayoutKind.Sequential)]
        public class KeyBoardHookStruct
        {
            public int vkCode;
            public int scanCode;
            public int flags;
            public int time;
            public int dwExtraInfo;
        }
        //委托
        public delegate int HookProc(int nCode, int wParam, IntPtr lParam);
        static int hHook = 0;
        public const int WH_KEYBOARD_LL = 13;
        //LowLevel键盘截获,如果是WH_KEYBOARD=2,并不能对系统键盘截取,Acrobat Reader会在你截取之前获得键盘。
        static HookProc KeyBoardHookProcedure;

        //设置钩子
        [DllImport("user32.dll")]
        public static extern int SetWindowsHookEx(int idHook, HookProc lpfn, IntPtr hInstance, int threadId);

        //抽掉钩子
        [DllImport("user32.dll", CharSet = CharSet.Auto, CallingConvention = CallingConvention.StdCall)]
        public static extern bool UnhookWindowsHookEx(int idHook);

        //调用下一个钩子
        [DllImport("user32.dll")]
        public static extern int CallNextHookEx(int idHook, int nCode, int wParam, IntPtr lParam);

        [DllImport("kernel32.dll")]
        public static extern int GetCurrentThreadId();

        [DllImport("kernel32.dll")]
        public static extern IntPtr GetModuleHandle(string name);

        public static void Hook_Start()
        {
            if (hHook == 0)
            {
                KeyBoardHookProcedure = new HookProc(KeyBoardHookProc);
                hHook = SetWindowsHookEx(WH_KEYBOARD_LL, KeyBoardHookProcedure,
                        GetModuleHandle(Process.GetCurrentProcess().MainModule.ModuleName), 0);
                //如果设置钩子失败.
                if (hHook == 0)
                {
                    Hook_Clear();
                }
            }
        }

        /// <summary>
        /// 取消钩子事件
        /// </summary>
        public static void Hook_Clear()
        {
            bool retKeyboard = true;
            if (hHook != 0)
            {
                retKeyboard = UnhookWindowsHookEx(hHook);
                hHook = 0;
            }
        }

        public static int KeyBoardHookProc(int nCode, int wParam, IntPtr lParam)
        {
            if (nCode >= 0)
            {
                KeyBoardHookStruct kbh = (KeyBoardHookStruct)Marshal.PtrToStructure(lParam, typeof(KeyBoardHookStruct));
                Keys k = (Keys)Enum.Parse(typeof(Keys), kbh.vkCode.ToString());
                switch (k)
                {
                    case Keys.Left:
                        if (kbh.flags == 1)
                        {
                            // 这里写按下后做什么事
                            if (CarCtl.CurrentStatus != CarCtl.CarStatus.Up)
                            {
                                CarCtl.TurnFunc("t_left");
                                CarCtl.CurrentStatus = CarCtl.CarStatus.Up;
                            }
                        }
                        else if (kbh.flags == 129)
                        {
                            //放开后做什么事
                            CarCtl.TurnFunc("t_stop");
                            CarCtl.CurrentStatus = CarCtl.CarStatus.Stop;
                        }
                        return 1;
                    case Keys.Up:
                        if (kbh.flags == 1)
                        {
                            // 这里写按下后做什么事
                            if (CarCtl.CurrentStatus != CarCtl.CarStatus.Up)
                            {
                                CarCtl.TurnFunc("t_up");
                                CarCtl.CurrentStatus = CarCtl.CarStatus.Up;
                            }
                        }
                        else if (kbh.flags == 129)
                        {
                            //放开后做什么事
                            CarCtl.TurnFunc("t_stop");
                            CarCtl.CurrentStatus = CarCtl.CarStatus.Stop;
                        }
                        return 1;
                    case Keys.Right:
                        if (kbh.flags == 1)
                        {
                            if (CarCtl.CurrentStatus != CarCtl.CarStatus.Up)
                            {
                                CarCtl.TurnFunc("t_right");
                                CarCtl.CurrentStatus = CarCtl.CarStatus.Up;
                            }
                        }
                        else if (kbh.flags == 129)
                        {
                            //放开后做什么事
                            CarCtl.TurnFunc("t_stop");
                            CarCtl.CurrentStatus = CarCtl.CarStatus.Stop;
                        }
                        return 1;
                    case Keys.Down:
                        if (kbh.flags == 1)
                        {
                            if (CarCtl.CurrentStatus != CarCtl.CarStatus.Up)
                            {
                                CarCtl.TurnFunc("t_down");
                                CarCtl.CurrentStatus = CarCtl.CarStatus.Up;
                            }
                        }
                        else if (kbh.flags == 129)
                        {
                            //放开后做什么事
                            CarCtl.TurnFunc("t_stop");
                            CarCtl.CurrentStatus = CarCtl.CarStatus.Stop;
                        }
                        return 1;
                    default:
                        break;
                }
            }
            return CallNextHookEx(hHook, nCode, wParam, lParam);
        }
    }
}

这里主要说一下Android 的客户端

Android之前虽没怎么接触过,但凭着自己一些基础,还是慢慢摸索到了门路。唯一比较坑的是,在获取Wifi权限的时候,照着网上的介绍改了AndroidManifest.xml 加入

    <uses-permission android:name="android.permission.ACCESS_WIFI_STATE"/>
    <uses-permission android:name="android.permission.INTERNET"/>
	<uses-permission android:name="android.permission.WAKE_LOCK"/>
	<uses-permission android:name="android.permission.CHANGE_WIFI_STATE"/>
	<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>

依然没有访问网络的权限 🙁

为此还特意加了几个Android的开发群,但是群里一个个爱答不理,趾高气扬的态度,我就呵呵了。果断退群,还是得靠自己,扶梯子上Google,一顿搜搜搜,果然有同病相怜的朋友。

原因竟然是一个小问题目标SDK版本不对。。。好吧,果然弱爆了。

android_target_sdk_version_error







按上图将Target SDK Version 从18改成19,运行,测试,这次果然可以了。如下:

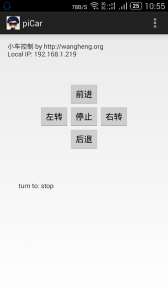

piCar截图





















代码也比较简单,核心代码如下:

package com.apiof.picar;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.net.HttpURLConnection;
import java.net.InetAddress;
import java.net.MalformedURLException;
import java.net.NetworkInterface;
import java.net.SocketException;
import java.net.URL;
import java.util.Enumeration;
import java.util.HashMap;
import java.util.Map;

import android.net.wifi.WifiInfo;
import android.net.wifi.WifiManager;
import android.os.Bundle;
import android.os.StrictMode;
import android.app.Activity;
import android.app.AlertDialog;
import android.content.Context;
import android.content.DialogInterface;
import android.util.Log;
import android.view.KeyEvent;
import android.view.Menu;
import android.view.View;
import android.view.WindowManager;
import android.widget.Button;
import android.widget.TextView;
import android.widget.Toast;
import android.view.View.OnClickListener;

public class MainActivity extends Activity {

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);
		// 禁止屏幕锁屏,也可以用View.setKeepScreenOn(boolean)来实现
		getWindow().addFlags(WindowManager.LayoutParams.FLAG_KEEP_SCREEN_ON);
		InitHandler();

		TestNetWork();
	}

	public void DisplayToast(String str)
	{
		Toast.makeText(this, str, Toast.LENGTH_SHORT).show();
	}

	public boolean onKeyDown(int KeyCode, KeyEvent event) {
		switch (KeyCode) {
		case KeyEvent.KEYCODE_0:
			DisplayToast("按下数字0");
			break;
		}
		return super.onKeyDown(KeyCode, event);
	}

	@Override
	public boolean onKeyUp(int keyCode,KeyEvent event){
		switch(keyCode){
		case KeyEvent.KEYCODE_0:
			DisplayToast("松开数字0");
			break;
		}
		return super.onKeyUp(keyCode, event);
	}

	public void TestNetWork() {

		String strUrl = "http://nas.apiof.com:2000";
		StrictMode.setThreadPolicy(new StrictMode.ThreadPolicy.Builder()
				.detectDiskReads().detectDiskWrites().detectNetwork()
				.penaltyLog().build());
		URL url = null;
		try {
			url = new URL(strUrl);
			System.out.println(url.getPort());
			HttpURLConnection urlConn = (HttpURLConnection) url
					.openConnection();
			InputStreamReader in = new InputStreamReader(
					urlConn.getInputStream());
			BufferedReader br = new BufferedReader(in);
			String result = "";
			String readerLine = null;
			while ((readerLine = br.readLine()) != null) {
				result += readerLine;
			}
			in.close();
			urlConn.disconnect();

			System.out.println("r:" + result);
			TextView textView = (TextView) this.findViewById(R.id.textView2);
			textView.setText(result);
		} catch (MalformedURLException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (IOException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
	}

	@Override
	public void onBackPressed() {
		new AlertDialog.Builder(this).setTitle("确认退出吗?")
				.setIcon(android.R.drawable.ic_dialog_info)
				.setPositiveButton("确定", new DialogInterface.OnClickListener() {

					@Override
					public void onClick(DialogInterface dialog, int which) {
						// 点击“确认”后的操作
						MainActivity.this.finish();
					}
				})
				.setNegativeButton("返回", new DialogInterface.OnClickListener() {

					@Override
					public void onClick(DialogInterface dialog, int which) {
						// 点击“返回”后的操作,这里不设置没有任何操作
					}
				}).show();
	}

	@Override
	public boolean onCreateOptionsMenu(Menu menu) {
		// Inflate the menu; this adds items to the action bar if it is present.
		getMenuInflater().inflate(R.menu.main, menu);
		return true;
	}

	private String intToIp(int i) {

		return (i & 0xFF) + "." + ((i >> 8) & 0xFF) + "." + ((i >> 16) & 0xFF)
				+ "." + (i >> 24 & 0xFF);
	}

	public String getLocalIpAddress() {
		try {
			for (Enumeration<NetworkInterface> en = NetworkInterface
					.getNetworkInterfaces(); en.hasMoreElements();) {
				NetworkInterface intf = en.nextElement();
				for (Enumeration<InetAddress> enumIpAddr = intf
						.getInetAddresses(); enumIpAddr.hasMoreElements();) {
					InetAddress inetAddress = enumIpAddr.nextElement();
					if (!inetAddress.isLoopbackAddress()) {
						return inetAddress.getHostAddress().toString();
					}
				}
			}
		} catch (SocketException ex) {
			Log.e("WifiPreference IpAddress", ex.toString());
		}
		return null;
	}

	public void InitHandler() {
		// 获取wifi服务
		WifiManager wifiManager = (WifiManager) getSystemService(Context.WIFI_SERVICE);
		// 判断wifi是否开启
		if (!wifiManager.isWifiEnabled()) {
			wifiManager.setWifiEnabled(true);
		}
		WifiInfo wifiInfo = wifiManager.getConnectionInfo();
		int ipAddress = wifiInfo.getIpAddress();
		String ip = intToIp(ipAddress);
		TextView txt1 = (TextView) findViewById(R.id.textView1);
		txt1.setText(txt1.getText() + "\r\nLocal IP: " + ip);


		((Button)findViewById(R.id.btnStop)).setOnClickListener(stopHandler);
		((Button)findViewById(R.id.btnForward)).setOnClickListener(upHandler);
		((Button)findViewById(R.id.btnBackward)).setOnClickListener(downHandler);
		((Button)findViewById(R.id.btnTurnLeft)).setOnClickListener(leftHandler);
		((Button)findViewById(R.id.btnTurnRight)).setOnClickListener(rightHandler);
	}

	private void Trun(String id) {
		TextView txt = (TextView) findViewById(R.id.textView2);
		try {
			String requestUrl = "http://192.168.1.171:2000/ctl";
			Map<String, String> requestParams = new HashMap<String, String>();
			requestParams.put("id", id);
			String result = HttpUtils.submitPostData(requestUrl,
					requestParams, "utf-8");

			txt.setText("turn to: "+result);
		} catch (Throwable e) {
			e.printStackTrace();
		}
	}

	private OnClickListener stopHandler=new OnClickListener() {
		public void onClick(View v) {
			Trun("t_stop");
		}
	};
	private OnClickListener leftHandler=new OnClickListener() {
		public void onClick(View v) {
			Trun("t_left");
		}
	};
	private OnClickListener rightHandler=new OnClickListener() {
		public void onClick(View v) {
			Trun("t_right");
		}
	};
	private OnClickListener upHandler=new OnClickListener() {
		public void onClick(View v) {
			Trun("t_up");
		}
	};
	private OnClickListener downHandler=new OnClickListener() {
		public void onClick(View v) {
			Trun("t_down");
		}
	};

}

完整的代码放到了我的Github 共享,需要的朋友可以参考下载:

https://github.com/wujiwh/piCar/tree/master/client/android

原创文章,请阅读页脚的许可方式,转载请注明: 转载自王恒的博客 [ https://wangheng.org ]

本文链接地址: https://wangheng.org/?p=95039

1条评论 在“树莓派Wifi小车(二)”

  1. ila说道:

    我没写过android,怎么把下载的文件夹整个打包成apk

给我留言

*

*
