wiring Pi 是专门为树莓派打造的类似于arduino下的wiring驱动库,安装好这个库后可以直接调用函数配置和控制GPIO功能。

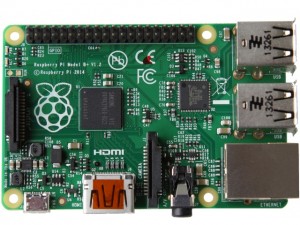

我买的树莓派B+版本,如图:

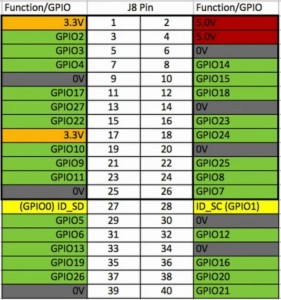

可见共有个40pin的扩展 gpio,电源IO包含3.3v 5v ,接口定义如下图所示:

一、首先我们先安装开发环境
1 2 3 4 5 6 7 8 9 10 11 12 13 14
| sudo apt-get install libi2c-dev sudo apt-get install git-core
git clone git://git.drogon.net/wiringPi cd wiringPi git pull origin
cd wiringPi/
./build
gpio -v gpio readall
|

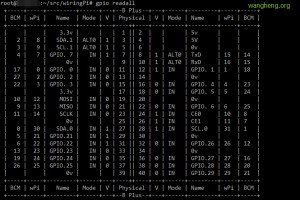

执行完 gpio readall 会显示当前板子的接口定义!如下图:
比如 12 | 1 | IN | GPIO. 1 | 1 | 18
表示你用wiring库中的函数操作gpio1,其实是操作BCM格式的gpio18端口,物理的12针脚。
二、模块准备
DHT11是比较常用的一块传感器,物美价廉,同时可以获取到环境的温度和湿度。由于比较简单,我就没有买那种焊接好的模块,只是一个DHT11的传感器,回来自己简单焊接封装了一下。

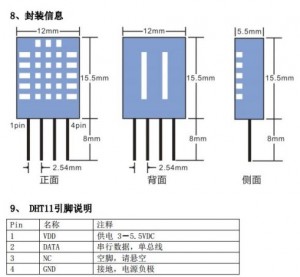

DHT11的针脚说明如下:
从左至右分别是1、2、3、4针脚,使用的时候我们需要加装一个上拉电阻,简单地说就是在第一第二针脚之间接一个10K左右的电阻。
接线比较简单,就不过多介绍了。
三、获取传感器数据
由于树莓派比起Arduino还是强大的太多,所以无论是用c还是python都可以很方便的按照模块的时序图编写驱动。网上各种各样的版本也是太多,思路就是严格按照手册规范来,数据校验失败的作为垃圾数据扔掉。参照比较正统的做法,自己整理了一份代码,需要的朋友也可以顺手拿走。
代码很短,参考如下:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112
| #include <wiringPi.h> #include <stdio.h> #include <stdlib.h>
typedef unsigned char uint8; typedef unsigned int uint16; typedef unsigned long uint32;
#define HIGH_TIME 32
int gpioPin =4; uint32 databuf;
uint8 readSensorData(void) { uint8 crc; uint8 i;
pinMode(gpioPin,OUTPUT); digitalWrite(gpioPin, 0); delay(25); digitalWrite(gpioPin, 1); pinMode(gpioPin, INPUT); pullUpDnControl(gpioPin,PUD_UP);
delayMicroseconds(27); if(digitalRead(gpioPin)==0) { while(!digitalRead(gpioPin));
for(i=0;i<32;i++) { while(digitalRead(gpioPin)); while(!digitalRead(gpioPin)); delayMicroseconds(HIGH_TIME); databuf*=2; if(digitalRead(gpioPin)==1) { databuf++; } }
for(i=0;i<8;i++) { while(digitalRead(gpioPin)); while(!digitalRead(gpioPin)); delayMicroseconds(HIGH_TIME); crc*=2; if(digitalRead(gpioPin)==1) { crc++; } } return 1; } else { return 0; } }
int main (int argc, char **argv) {
if (argc != 2) { printf("usage: %s GPIOpin#\n", argv[0]); printf("example: %s 1 - Read from wiringPi GPIO #1\n", argv[0]); return 2; }
gpioPin = atoi(argv[1]);
if (gpioPin <= 0) { printf("Please select a valid GPIO pin #\n"); return 3; }
printf("Use GPIO%d to read data!\n",gpioPin);
if (-1 == wiringPiSetup()) { printf("Setup wiringPi failed!"); return 1; }
pinMode(gpioPin, OUTPUT); digitalWrite(gpioPin, 1);
while(1) { pinMode(gpioPin,OUTPUT); digitalWrite(gpioPin, 1); delay(3000); if(readSensorData()) { printf("Success! Sensor data read ok!\n"); printf("Hum=%d.%d\%\n",(databuf>>24)&0xff,(databuf>>16)&0xff); printf("Temp=%d.%dC\n",(databuf>>8)&0xff,databuf&0xff); databuf=0; break; } else { databuf=0; } } return 0; }
|
完整的代码放在了我的github共享:https://github.com/wujiwh/DHT11_yeelink/
使用方式:
1、首先编译,切换到工作目录
make
2、执行 ./dht11 GPIO端口号
看看是不是有数据显示了!
四、上传传感器数据到yeelink
数据上传就更简单了,这已经基本跟硬件没多少关系了,众多的物联网平台里面yeelink算是做的不错的,各方面的文档也很容易搜到。官网是:http://www.yeelink.net/ 你需要注册一个账号来获取你的apikey,有了这个apikey我们才能发布我们的数据到物联网平台。网上有很详细的介绍,我就不冗述了。
1、linux下面发送POST请求,最简单的莫过于直接使用crul了!我写了一个简陋的脚本来发送温度数据到yeelink平台,湿度类似。
代码如下:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
| #!/bin/sh
yeelink_ApiKey='XXX' yeelink_URL='http://api.yeelink.net/v1.1/device/XXX/sensor/XXX/datapoints' temp=$(./dht11 1 |awk '/Hum/' |awk -F '=' '{print $2}'|sed 's/%//') echo $temp curl_cmd="curl --request POST --data '{\"value\":$temp}' --header U-ApiKey:$yeelink_ApiKey --verbose $yeelink_URL" echo $curl_cmd|sh
|
PS:awk用的还不是很熟,写的比较啰嗦,有更专业的朋友看到,欢迎拍砖。
2、使用python似乎也是一个非常不错的选择,python漂亮的语法,写起来也很简单。
代码如下:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71
| ''' #============================================================================= # FileName: dht11_post.py # Desc: # Author: wangheng # Email: [email protected] # HomePage: http://wangheng.org # Version: 0.0.1 # LastChange: 2015-01-27 22:40:37 # History: #============================================================================= '''
import subprocess import re import json import sys import time import datetime import requests
API_Headers = {'U-ApiKey': 'XXX', 'content-type': 'application/json'} API_URL="http://api.yeelink.net/v1.1/device/%s/sensor/%s/datapoints"
device_id="XXX" hum_sensor_id="XXX" temp_sensor_id="XXX"
hum_url = API_URL % (device_id, hum_sensor_id) temp_url = API_URL % (device_id, temp_sensor_id)
while(True): output = subprocess.check_output(["./dht11", "1"]); matches = re.search("Temp=([0-9.]+)C", output) if (not matches): time.sleep(3) continue temp = float(matches.group(1)) matches = re.search("Hum=([0-9.]+)\%", output) if (not matches): time.sleep(3) continue humidity = float(matches.group(1))
print "Temperature: %.1f C" % temp print "Humidity: %.1f %%" % humidity try:
post_data = {'value': temp} r = requests.post(temp_url, headers=API_Headers, data=json.dumps(post_data)) post_data = {'value': humidity} r = requests.post(hum_url, headers=API_Headers, data=json.dumps(post_data))
print "Post to yeelink success!" except: print "Unable to post data. Check your connection?" sys.exit()
time.sleep(15)
|
